SMARTTECH3D Robotized

SMARTTECH3D Robotized is integrated ecosystem for automatization of the quality control and reverse engineering processes. The device incorporates advantages of robotic arm and a high-resolution scanning head with a 20MP detector for full implementation of the designed measurement process. The system will not only enable the user 3D models’ creation automatization but also independently prepare an examination report in PDF format and display a map of deviations from the CAD model directly on to the measured object. This functionality is a universal solution for industrial, as well as archaeological and research applications.

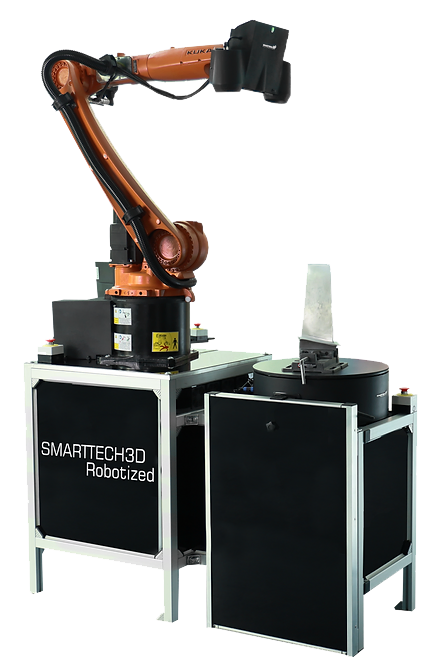

Scanning head with KUKA robotic arm

SMARTTECH3D Robotized is available in three models with different working volumes. Each of the models is equipped with a light scanning head with a stereoscopic system of 20 MP resolution cameras, a KUKA robotic arm, workstations, rotary stage, and advanced SMARTTECH3dmeasure software with a robotic module.

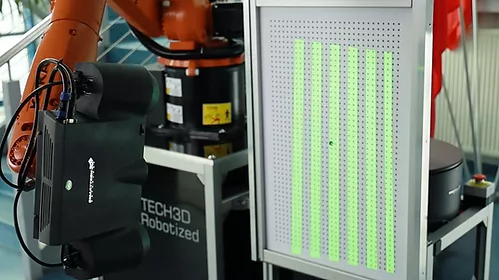

Automatic calibration process

The entire SMARTTECH3D ROBOTIZED system is designed for maximal automatization of all processes and minimizing the risk of human errors. Automation of the calibration process gives the user a guarantee of achieving the measurement accuracy declared by the manufacturer, regardless of the operator’s experience, which increases the reliability of the entire system and allows easy integration with the quality systems in the enterprise.

Precise quality control and reverse engineering

The measuring station is managed by the software SMARTTECH3Dmeasure installed on an efficient workstation. This dedicated software controls the entire measurement process, starting from control of operating system parameters, up to saving finished 3D model or ready quality report in PDF file.
