CADMOULD PACK

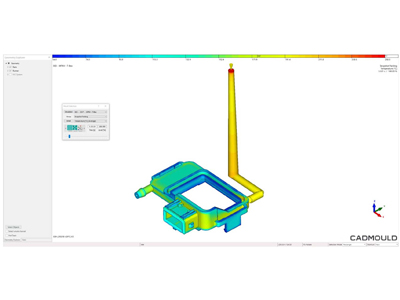

CADMOULD Pack extends the simulation to the packing phase of plastic injection molding. This lays an important foundation for solving shrinkage and warpage issues, as well as improving cycle times and optimizing clamping forces.

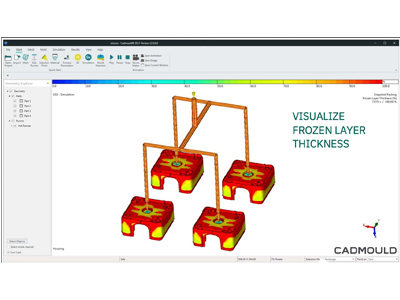

CADMOULD Pack enables you to visualize the evolution of frozen layer thickness across your packing phase.
BENEFITS OF USING CADMOULD PACK
- Optimally specify packing pressure, clamping force, and cooling phase parameters
- Reliably determine freezing, sealing and demolding times
- Achieve uniform volume shrinkage distribution over the molded part

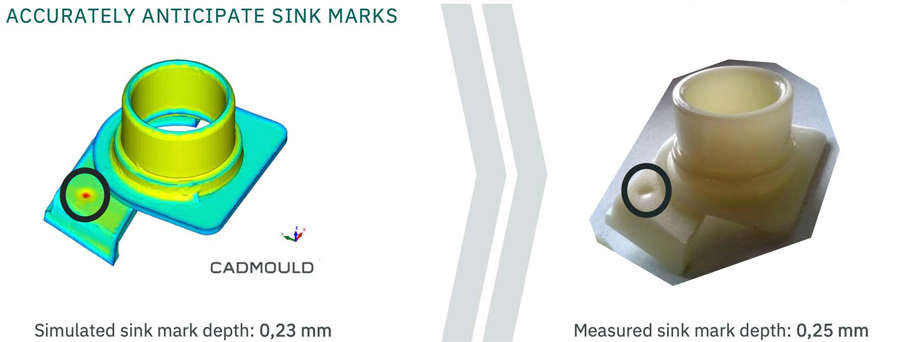

- Avoid sink marks
- Reduce part warpage through optimized shrinkage compensation (calculation of shrinkage and distortion results also requires the Warp module)
- Analyze temperatures and pressures to ensure reliable demolding
- Determine key data for part and tool costing by determining an optimized packing pressure and cooling phase with the software
- Optimize existing processes to achieve shorter cycle times, or in order to enable switching to a different injection molding machine
